Connector EMI Suppression Plates

Connector Plates


Part Number

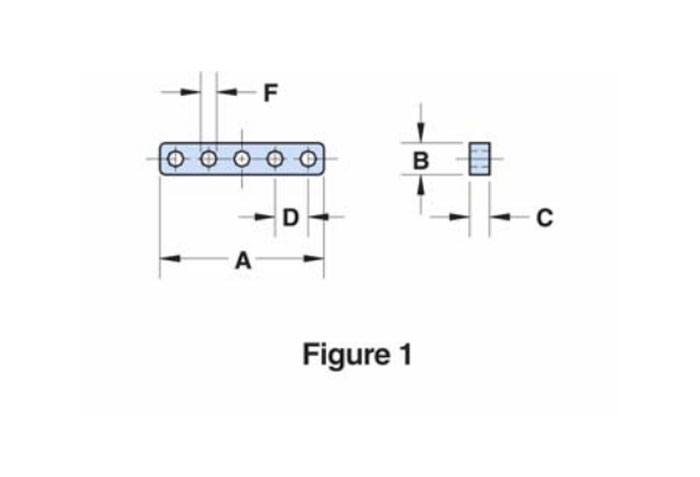

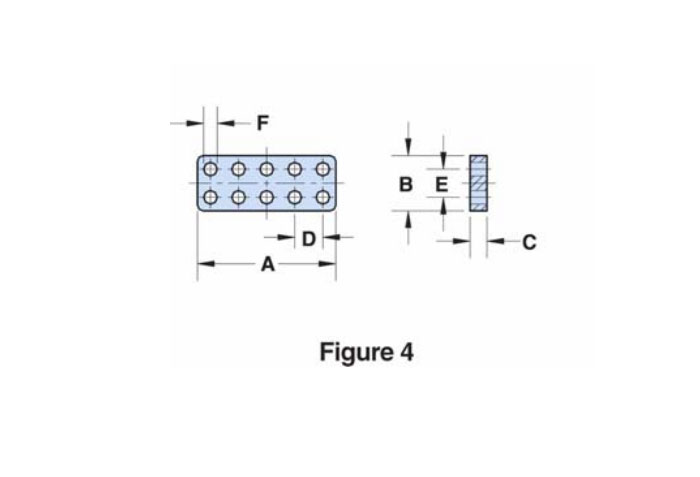

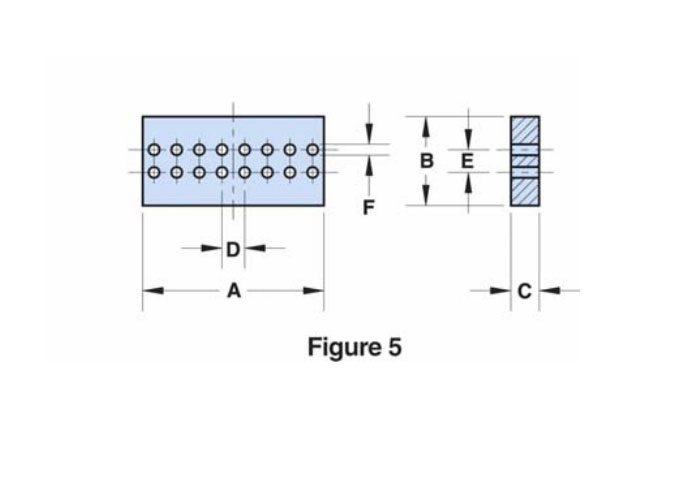

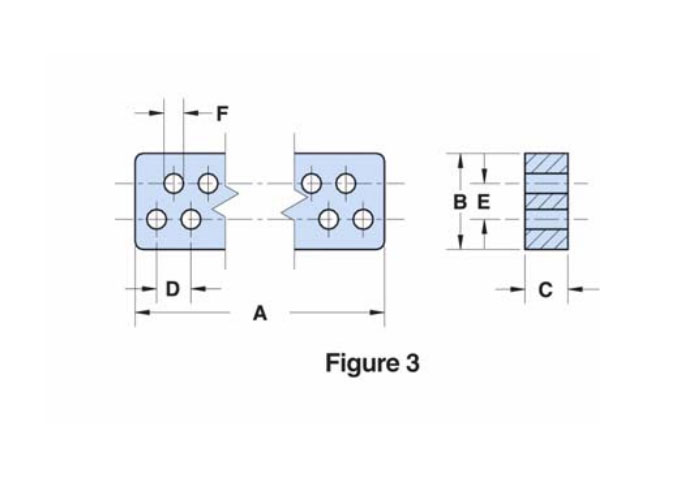

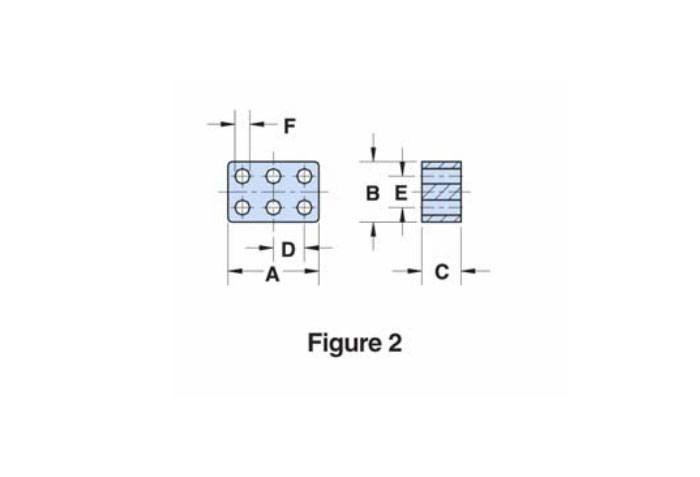

Fig.

Holes

Rows

A

B

C

D

E

F

Wt.

(g)

Impedance (Ω)

25
MHz+

100
MHz+

2644246701

1

5

1

12.52±0.13
0.493

2.54Max
0.100Max

1.52±0.13
0.060

2.54±0.13
0.100

_

1.22±0.07
0.048

0.18

13

28

2644246201

2

6

2

5.86±0.10
0.231

3.86±0.10
0.152

1.52±0.13
0.060

2.00±0.08
0.079

2.00 ±0.08
0.079

0.82+0.10
0.034

0.14

14

28

2644245701

2

6

2

7.44±0.10
0.293

4.90±0.10
0.193

1.52±0.13
0.060

2.54±0.13
0.100

2.54±0.10
0.100

1.22 ±0.07
0.048

0.22

13

28

2644236101

3

9

2

14.40±0.15
0.567

7.75-0.25
0.300

3.43±0.13
0.135

2.75±0.13
0.108

2.85±0.13
0.112

1.60 ±0.08
0.062

1.60

30

51

2644236401

3

9

2

14.40±0.15
0.567

7.7-0.25
0.300

6.86±0.13
0.270

2.75 ±0.13
0.108

2.85 ±0.13
0.112

1.60 ±0.08
0.062

3.20

56

91

2644247001

4

10

2

12.52±0.13
0.493

4.94±0.14
0.194

1.52±0.13
0.060

2.54±0.13
0.100

2.54±0.10
0.100

1.22 ±0.07
0.048

0.37

13

28

2644247101

4

10

2

12.52±0.13
0.493

4.94±0.14
0.194

3.05±0.13
0.120

2.54±0.13
0.100

2.54±0.10
0.100

1.22 ±0.07
0.048

0.74

23

40

2644236301

3

15

2

22.55±0.25
0.888

7.75-0.25
0.300

3.43±0.13
0.135

2.75±0.13
0.108

2.85 ±0.13
0.112

1.60 ±0.08
0.062

2.40

30

51

2644236501

3

15

2

22.55±0.25
0.888

7.75-0.25
0.300

6.86±0.13
0.270

2.75±0.13
0.108

2.85±0.13
0.112

1.60±0.08
0.062

4.90

56

91

2644373941

5

16

2

21.60±0.25
0.850

11.65-0.40
0.451

1.52±0.13
0.060

2.54±0.13
0.100

7.62 ±0.15
0.300

1.00+0.15
0.042

2.90

19

36

2644373841

5

16

2

20.30±0.25
0.800

10.15-0.40
0.392

3.18±0.13
0.125

2.54±0.13
0.100

2.54 ±0.10
0.100

1.22±0.07
0.048

2.80

30

51

2644236001

3

25

2

36.30 ±0.40
1.430

7.75-0.25
0.300

3.43±0.13
0.135

2.75±0.13
0.108

2.85±0.13
0.112

1.60±0.08
0.062

3.60

30

51

2644236601

3

25

2

36.30±0.40
1.430

7.75-0.25
0.300

6.86±0.13
0.270

2.75±0.13
0.108

2.85±0.13
0.112

1.60 ±0.08
0.062

7.20

56

91
